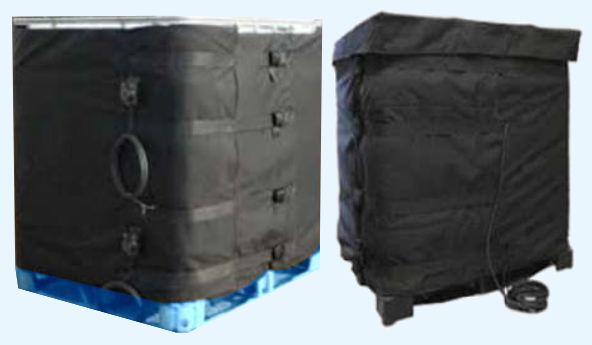

IBC heating jacket heats up the products inside IBC, reducing the viscosity of products or melting solids so they can be poured. Use of Self-regulating type heating element for heat-up ensures longer life, trouble free operations and eliminates the possibility of hot spots, even if the jacket is in loose contact with the IBC
| Wattage | 2000W |
|---|---|
| Operating voltage | 230V AC, 50HZ (110V volt option also available) |
| MOC | Silicon coated fiberglass mat |
| Heating | Self- regulating type heating cable |
| Control | Analog adjustable Thermostat |
| Fastening | belts with plastic buckles |
| Approximate dimensions | 4405x1010x20mm (thk) with insulation |
| Power ord | 5m |
| Heating cable approval | ATEX/IEC Exd./CCOE |
Features

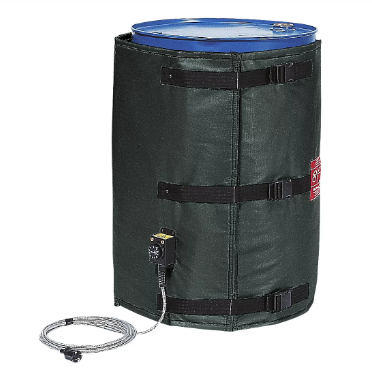

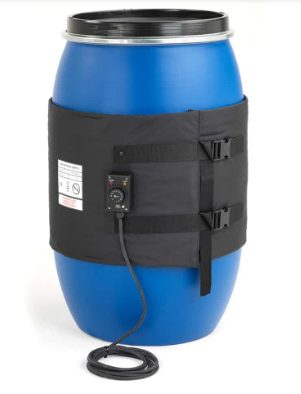

Drum/Canister heating jackets, comprising of Self-
regulating or constant wattage heating element
sandwiched between 2 layers of silicon coated fiber glass
fabric and layer of insulation.
Operating voltage options: 120V / 208 -277V AC,
50-60HZ
